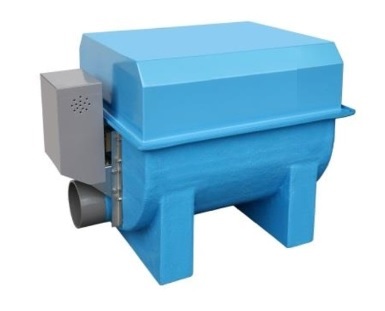

Drum Filter
Quality Drum Filter for water treatment and aquaculture.
Suitable for RAS project.
Removing baits, feces, suspension and organic matters quickly.
Add to inquiry
Suitable for RAS project.
Removing baits, feces, suspension and organic matters quickly.
Description
Application
High density recirculating aquaculture, Backish water purification and filtration, large amount sewage and water treatment.
Characteristic:
- Outer case made by PVC or FRP for resistance, matching with special PP filter.
- Easy installation, operation and maintenance.
- Sealed design for low noise, no splashing and good filering effect.
- Automaic operation and cleasing extend filters service life, not getting blocked easily.
- Removing baits, feces, suspension and organic matters quickly.
- Autmatic high-pressure cleasing, no consumables.
Feature.
- The large suspension will be locked on the filter sheet section.
- High pressure cleasing will discharge the waste through outfall pipe.
Specification
|
Model |
PHDF-361A | PHDF-501A | PHDF-761A | PHDF-762A | PHDF-763A |
| Frame Materials | Polyvinylchloride | FRP |
|||
| Drum Material |
PVC |
ANSI 316L | |||
| Filter Cloth |
High pressure PE Screen |
||||
| Filter Mesh Size |
(60um)(90um)(120um) |
||||
|
Flow Rate
|
8~12m3/hr | 15~30m3/hr | 30~55m3/hr | 50~100m3/hr | 90~150m3/hr |
| Backwash Injector | High pressure / more 5.5bar | ||||
| Rotary Motor | 220Vx1∅ | 220Vx1∅ | 0.4KW/220V/380Vx3∅ |
||
|
Inlet/outlet |
3"x4" | 5"x5" | 6"x6" | 8"x8" | 10"x12" |
|
Dimensions (cm) |
650x520x510 | 750x810x710 | 1000x1050x1116 | 1425x1050x1116 | 1846x1050x1116 |
