Sewage Pump
Feature
- Dependable laminated sheet of Si steel is adopted to motor; shaft and rotor are machining precisely to raise stability and efficiency of motor.
- Motor frame, shaft, screws are made of stainless steel to provide long service life and attractive appearance.
- Impeller is designed for special water flow, muddy liquid and other various waste water can be efficiently drained.
- The product range is up to 15HP, dual SIC mechanical seals is built in (3HP and above).
- Inner cable wires and cable base are upgraded by filling EPOXY to raise humidity-resistance.
- Superior design to easily disassemble motor and pump housing for maintenance.
Application
- Drainage of basement, food market and animal husbandry, water treatment of waste water plant, drainage of water refining tank and drainage of various industrial waste water...etc.
Performance
Specification
50HZ/RPM-3000
|
Model |
Power |
Discharge |
PH |
Standards |
Dimension (mm) |
Weight |
|||
|
Head |
Capacity |
L |
W |
H |
|||||
|
PEF-207 |
1 (0.75) |
2" |
1φ/3φ |
9 |
0.2 |
260 |
210 |
460 |
19 |
|
PEF-307 |
1 (0.75) |
3" |
1φ/3φ |
6.5 |
0.4 |
300 |
210 |
460 |
20 |
|

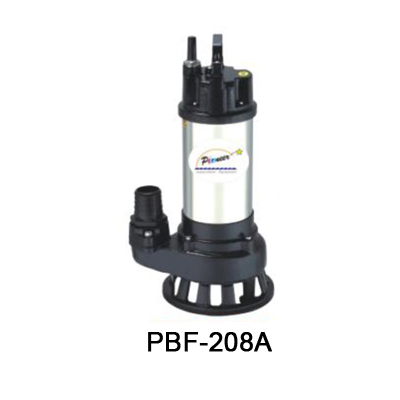

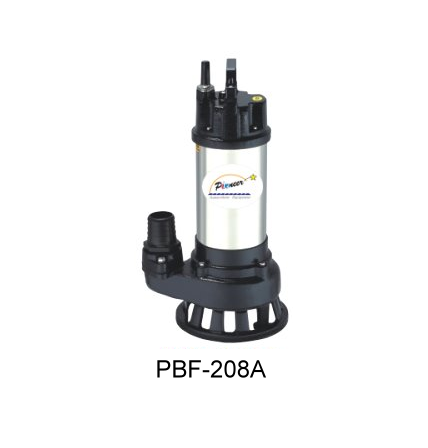

PBF-208A |
1½ (1.1) |
2" |
1φ220V / 3φ |
10 |
0.2 |
260 |
210 |
480 |
24 |
|
PBF-308A |
1½ (1.1) |
3" |
1φ 220V / 3φ |
8 |
0.4 |
310 |
220 |
500 |
25 |
|

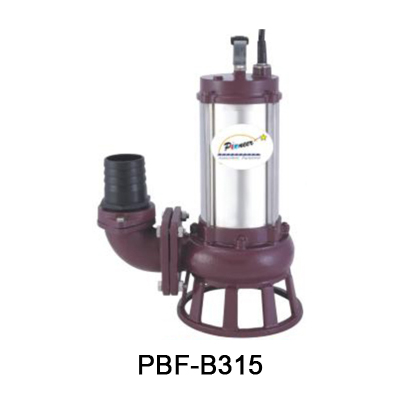

PBF-B315 |
2 (1.5) |
3" |
1φ 220V/ 3φ |
8 |
0.5 |
370 |
220 |
590/530 |
41/38 |
|
PBF-322A |
3 (2.2) |
3" |
3φ |
13 |
0.5 |
440 |
255 |
550 |
49 |
|
PBF-437A |
5 (3.7) |
3" / 4" |
3φ |
17 |
0.5 |
440 |
255 |
560 |
55 |
|
PBF-355A |
7½ (5.5) |
3" / 4" |
3φ |
24 |
0.5 |
470 |
250 |
570 |
60 |
|
PBF-475A |
10 (7.5) |
4" |
3φ |
24 |
1.0 |
560 |
310 |
700 |
102 |
|
PBF-4110 |
15 (11) |
4" |
3φ |
26 |
1.0 |
560 |
310 |
730 |
110 |
60HZ/RPM-3000
|
Model |
Power |
Discharge |
PH |
Standards |
Dimension (mm) |
Weight |
|||
|
Head |
Capacity |
L |
W |
H |
|||||
|
PEF-207 |
½ (0.5) |
2" |
1φ/3φ |
9 |
0.2 |
260 |
210 |
460 |
19 |
|
PEF-307 |
1 (0.75) |
3" |
1φ/3φ |
6 |
0.4 |
300 |
210 |
460 |
20 |
|
PBF-208A |
1½ (1.1) |
2" |
1φ220V / 3φ |
12 |
0.2 |
260 |
210 |
480 |
24 |
|
PBF-308A |
1½ (1.1) |
3" |
1φ 220V / 3φ |
7 |
0.4 |
310 |
220 |
500 |
25 |
|
PBF-B315 |
2 (1.5) |
3" |
1φ 220V/ 3φ |
8 |
0.5 |
370 |
220 |
590/530 |
41/38 |
|
PBF-322A |
3 (2.2) |
3" |
3φ |
12 |
0.5 |
440 |
255 |
550 |
49 |
|
PBF-437A |
5 (3.7) |
3" / 4" |
3φ |
18 |
0.5 |
440 |
255 |
560 |
55 |
|
PBF-355A |
7½ (5.5) |
3" / 4" |
3φ |
26 |
0.5 |
470 |
250 |
570 |
60 |
|
PBF-475A |
10 (7.5) |
4" |
3φ |
20 |
1.0 |
560 |
310 |
700 |
102 |
|
PBF-4110 |
15 (11) |
4" |
3φ |
27 |
1.0 |
560 |
310 |
730 |
110 |
