Waste Water Pump
Description
Features
- Mini size, lightweight and superior to same grades of other pumps.
- Motor Frame, shaft, screws and strainer are made of stainless steel to provide long service life and attractive appearance.
- Good performance, high water volume and energy saving, high wear-resistant mechanical seal and oil seal are adopted to maintain long time operation.
- Dependable laminated sheet of Si steel is adopted to motor; shaft and rotor are machining precisely to raise stability and efficiency of motor.
- Inner cable wires and cable base are upgraded by filling EPOXY to raise humidity-resistance.

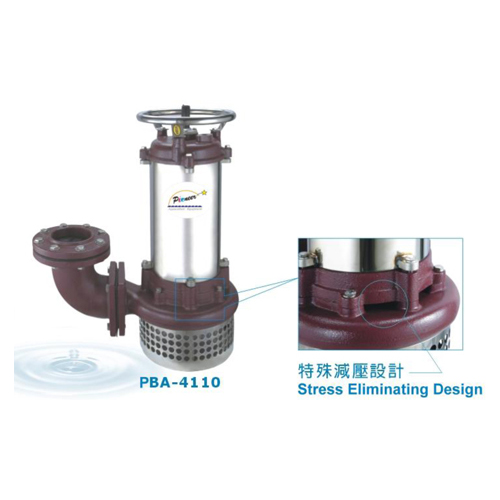

- The product range is up to 15HP, dual SIC mechanical seals is built in (3HP and above), and stress eliminating design is adopted (10HP and above) to raise operating efficiency.
- Superior design to easily disassemble motor and pump housing for maintenance.
Application
- Drainage of construction cite and subway, flood control/prevention of public construction, irrigation, water circulation of aquaculture and landscape pond...etc

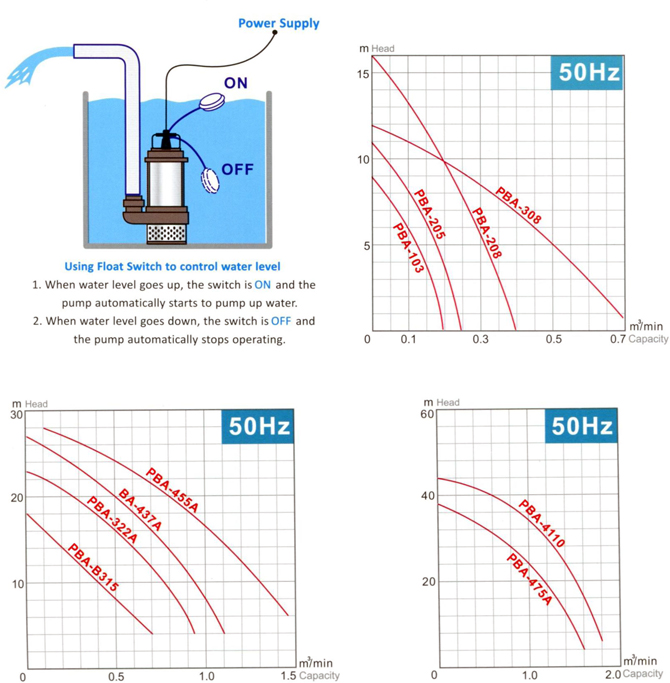

Performance
Specification
| 50HZ | RPM-3000 |
| Model | Power HP (kw) |
Discharge Inch |
PH φ |
Pole | Standards | Dimension (mm) | Weight (kg) |
|||
| Head (m) |
Capacity (m3 /min) |
L | W | H | ||||||
| Q-25 | 0.2(0.15) | 20/25mm | 1φ | 2 | 5 | 0.05 | 165 | 130 | 275 | 7 |
| PBA-103A | ½ (0.4) | 1½" | 1φ | 2 | 5.5 | 0.1 | 200 | 140 | 340 | 9 |
| PBA-205B | ½ (0.5) | 2" | 1φ / 3φ | 2 | 8 | 0.13 | 230 | 160 | 345 | 14.5 |
| PEA-207 | 1 (0.75) | 2" | 1φ / 3φ | 2 | 9 | 0.2 | 250 | 180 | 460 | 19 |
| PEA-307 | 1 (0.75) | 3" | 1φ / 3φ | 2 | 6.5 | 0.4 | 290 | 180 | 460 | 20 |
| PBA-208A | 1½ (1.1) | 2" | 1φ(220V)/ 3φ | 2 | 10 | 0.2 | 250 | 180 | 480 | 24 |
| PBA-308A | 1½ (1.1) | 3" | 1φ(220V)/ 3φ | 2 | 8 | 0.4 | 310 | 220 | 500 | 25 |
| PBA-B315 | 2 (1.5) | 3" | 1φ(220V)/ 3φ | 2 | 8 | 05 | 360 | 170 | 570/490 | 41/37.5 |
| PBA-322A | 3 (2.2) | 3" | 3φ | 2 | 13 | 0.5 | 440 | 255 | 550 | 48.5 |
| PBA-437A | 5 (3.7) | 3" / 4" | 3φ | 2 | 17 | 0.5 | 440 | 255 | 560 | 55 |

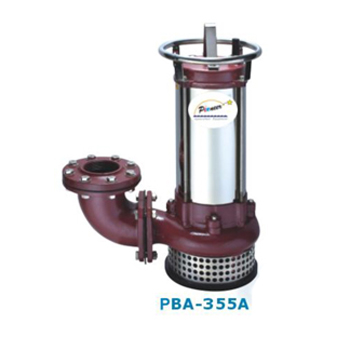

| PBA-355A | 7½ (5.5) | 3"/4" | 3φ | 2 | 24 | 0.5 | 470 | 250 | 570 | 60 |
| PBA-475A | 10 (7.5) | 4" | 3φ | 2 | 21 | 1.0 | 560 | 310 | 690 | 105 |
| PBA-4110 | 15 (11) | 4" | 3φ | 2 | 33 | 1.0 | 560 | 310 | 720 | 115 |
Specification
| 60HZ-3600RPM | RPM-3600 |
| Model | Power HP (kw) |
Discharge Inch |
PH φ |
Pole | Standards | Dimension (mm) | Weight (kg) |
|||
| Head (m) |
Capacity (m3 /min) |
L | W | H | ||||||
| PQ-25 | 0.2 (0.15) | 20/25mm | 1φ | 2 | 6 | 0.05 | 165 | 130 | 275 | 7 |
| PBA-103A | ½ (0.4) | 1½” | 1φ | 2 | 6 | 0.1 | 200 | 140 | 340 | 9 |
| PBA-205BE | ½ (0.5) | 2” | 1φ / 3φ | 2 | 8 | 0.13 | 230 | 160 | 345 | 14.5 |
| PEA-207 | 1 (0.75) | 2” | 1φ / 3φ | 2 | 10 | 0.2 | 250 | 180 | 460 | 19 |
| PEA-307 | 1 (0.75) | 3” | 1φ / 3φ | 2 | 7 | 0.4 | 290 | 180 | 460 | 20 |
| PBA-208A | 1½ (1.1) | 2” | 1φ(220V) 3 |
2 | 12 | 0.20 | 250 | 180 | 480 | 24 |
| PBA-308A | 1½ (1.1) | 3” | 1φ(220V) 3 |
2 | 7 | 0.5 | 310 | 220 | 500 | 25 |
| PBA-B315 | 2 (1.5) | 3" | 1φ(220V) 3 |
2 | 9 | 0.5 | 360 | 170 | 570/490 | 41/37.5 |
| PBA-322A | 3 (2.2) | 3" | 3φ | 2 | 15 | 0.55 | 440 | 255 | 550 | 48.5 |
| PBA-437A | 5 (3.7) | 3" / 4" | 3φ | 2 | 15 | 0.7 | 440 | 255 | 560 | 55 |
| PBA-355A | 7½ (5.5) | 3" / 4" | 3φ | 2 | 20 | 0.9 | 470 | 250 | 570 | 60 |
| PBA-455A | 7½ (5.5) | 4" | 3φ | 2 | 15 | 0.9 | 560 | 290 | 620 | 81.5 |
| PBA-475A | 7½ (5.5) | 4" | 3φ | 2 | 15 | 0.9 | 560 | 290 | 620 | 81.5 |
